5:1 LARGE FLOW INDUSTRY AIR-OPERATED OIL PUMP
Length:270mm, 940mm,1250mm
Pressure Ratio:5:1
Max Flow Rate:45L/min
Pressure Ratio:5:1
Max Flow Rate:45L/min
5:1 LARGE FLOW INDUSTRY AIR-OPERATED OIL PUMP
· Industrial using with high efficient, double acting
· Differential air motor ensures smooth pumping
· Supplied with adjustable 2'' bung adapter
· The steel tube: typical fluids handled include motor oil, synthetic oil, hydraulic oil, gear oil and automatic transmission fluid
Technical Data
| Item No. | Application | Air Inlet | Suction Tube Material | Length | Fluid Outlet | Pressure Ratio | Max Flow Rate |
| P466051 | Oil | 1/2"BSP | Steel galvanizing | 270mm | 3/4"BSP | 5:1 | 45L/min |
| P466054 | Oil | 1/2"BSP | Steel galvanizing | 940mm | 3/4"BSP | 5:1 | 45L/min |

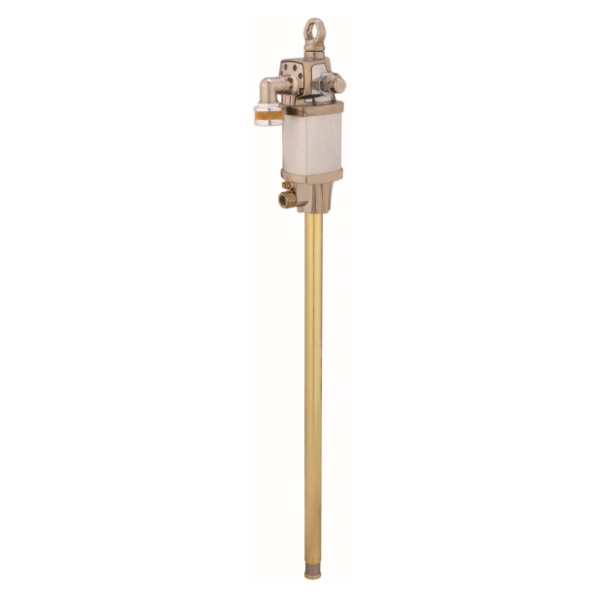

| P466055 | Oil | 1/2"BSP | Steel galvanizing | 1250mm | 3/4"BSP | 5:1 | 45L/min |
