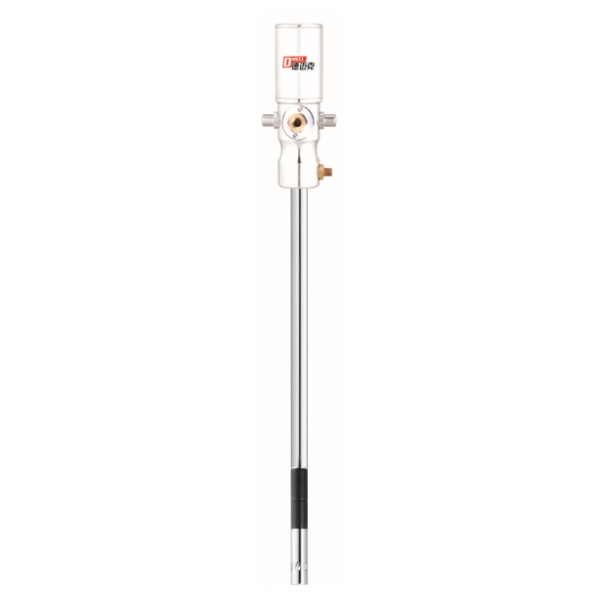

50:1 HEAVY DUTY AIR-OPERATED GREASE PUMP
Length:410mm, 480mm, 730mm,940mm
Pressure Ratio:50:1
Max Flow Rate:800g/min
Pressure Ratio:50:1
Max Flow Rate:800g/min
50:1 HEAVY DUTY AIR-OPERATED GREASE PUMP
· Typical Application: high pressure grease dispenser
· For dispensing grease of all types short and long distance at high pressure
· Non-corrosive design for long time use
· Compatible with integrated lubrication system
· Compatible with different sizes of grease drum in the market
· Less components;compact construction
· With less air consumption and higher efficiency.
Technical Data
| Item No. | Application | Air Inlet | Suction Tube Material | Length | Fluid Outlet | Pressure Ratio | Max Flow Rate |
| P626501 | Grease | Quick Plug (European) |
Steel galvanizing | 410mm | 1/4"BSP | 50:1 | 800g/min |
| P626502 | Grease | Quick Plug (European) |
Steel galvanizing | 480mm | 1/4"BSP | 50:1 | 800g/min |
| P626503 | Grease | Quick Plug (European) |
Steel galvanizing | 730mm | 1/4"BSP | 50:1 | 800g/min |
| P626504 | Grease | Quick Plug (European) |
Steel galvanizing | 940mm | 1/4"BSP | 50:1 | 800g/min |
