HOME  ꄲ  DEF/UREA/ADBLUE Pumps  ꄲ  AIR-OPERATED DOUBLE DIAPHRAGM PUMP
ꁆ ꁇ

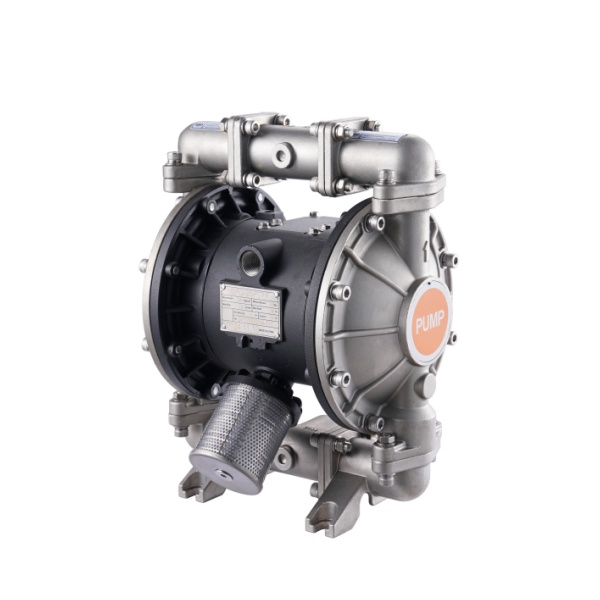

AIR-OPERATED DOUBLE DIAPHRAGM PUMP

Air Inlet: 1/4" NPT, 1/4" BSP
Fluid Outlet: 3/4", 1/2"
Flow Rate :13GPM, 16GPM, 50LPM, 60LPM
immediate consultation 뀠

recommend Products

ꄴPrevious： AIR-OPERATED DOUBLE DIAPHRAGM PUMP
ꄲNext： UREA/DEF TRANSFER MOBILE UNIT

AIR-OPERATED DOUBLE DIAPHRAGM PUMP

  • The diaphragm pump with convenient operating are widely used in various industries, such as petroleum, metallurgy, mining, coating material, printing, paper making, water treatment, automotive etc

  • Features an externally serviceable air distribution system and all-bolted construction

  • Chemical referance (Appendix A)

  • Nitrile: Diesel, Grease, Kerosene, Oil
    FPM: General transfer, Common automative and industry fluids

  • Maximum head: 164FT/50M

  • Maximum suction height: 10FT/3M

  • Pump body material: Aluminum

  • Max. pressure: 115PSI/8BAR

  • Air inlet: 1/4"

Technical Data



Item No. Application FPM Air Inlet Fluid Outlet Ball Valve Flow Rate
P200.01 DEF Nitrile 1/4"NPT 3/4" PTFE 16GPM
P200.02 DEF Nitrile 1/4" BSP 3/4" PTFE 60LPM
P200.03 DEF Nitrile 1/4" NPT 1/2" PTFE 13GPM
P200.04 DEF Nitrile 1/4" BSP 1/2" PTFE 50LPM
P200.05 DEF FPM 1/4" NPT 3/4" PTFE 16GPM
P200.06 DEF FPM 1/4" BSP 3/4" PTFE 60LPM
P200.07 DEF FPM 1/4" NPT 1/2" PTFE 13GPM
P200.08 DEF FPM 1/4" BSP 1/2" PTFE 50LPM





Product Details
