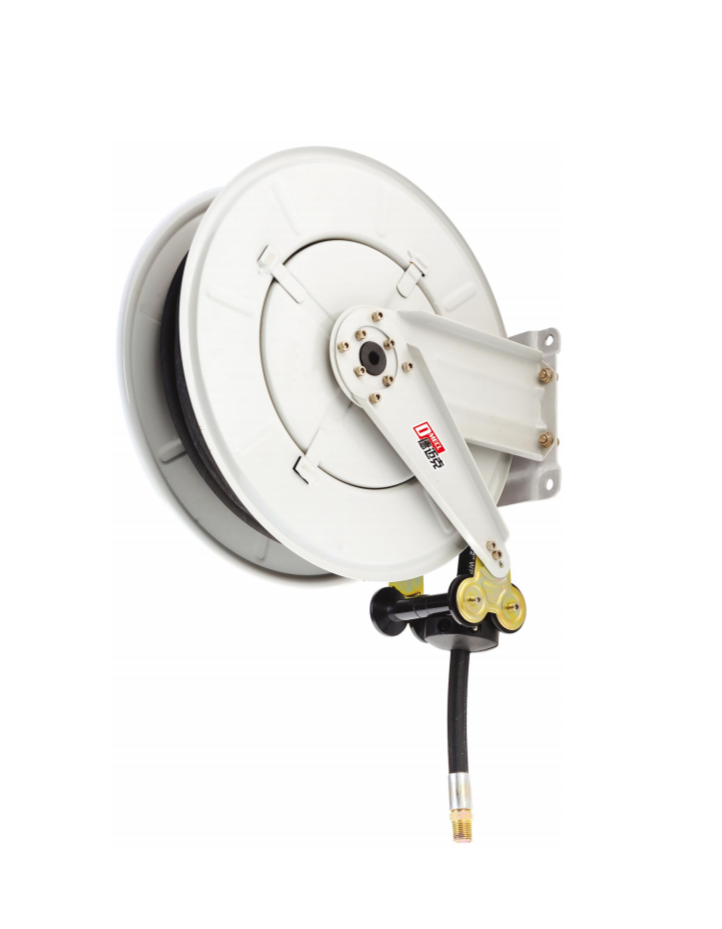

R620 Oil/Grease Hose Reel

D618 series

is the new development of spring driven and double-supported reel. Firm structure, good anti-seismic performance, and the external rotary joint is suitable for replacement.

Application
●Factory Workshop：Pneumatic tool；Low pressure water delivery；Oxyacetylene cutting
●Agricultural Garden：Water delivery；Irrigation
●Municipal Sanitation：Green conservation；Pipe dredging and cleaning
●Oil Transport：Diesel oil delivery；Engine oil and pressure oil filling
●Food Chemical Industry：High pressure cleaning
●Engineering Vehicle：Grease lubrication

Feature
●Rotary joint external, left and right side can be installed, especially suitable for symmetrical installation.
●Strong spring, you can choose with pressure recovery, also can provide cost-effective ordinary spring.
●Double-supported structure bracket, spool stamping forming, the whole lightweight, and strong strength are suitable for vehicle use.
●​​​​​​​Appearance of plastic spraying and galvanized process, overall corrosion resistance, anti-oil.
●​​​​​​​Latch pawl is limited in specific position to provide corresponding working length.
●​​​​​​​Multiple guide arm positions provide versatile uses and easier field adjustment.
●​​​​​​​Swivel with 500,000 times of service life.
●​​​​​​​High quality hose.

Item	length	Hose ID	Hose Material	Working pressure	Inlet/outlet
D6186202.015	15m	1/4"	SEA100R1AT	187Bar	1/4"
D6186402.015	15m	1/4"	SEA100R2AT	350Bar	1/4"
D6186204.015	15m	3/8"	SEA100R1AT	153Bar	3/8"
D6186404.015	15m	3/8"	SEA100R2AT	280Bar	3/8"
D6186206.015	15m	1/2"	SEA100R1AT	136Bar	1/2"
D6186406.015	15m	1/2"	SEA100R2AT	230Bar	1/2"

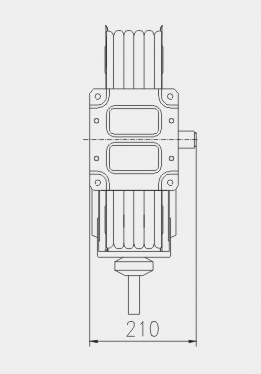

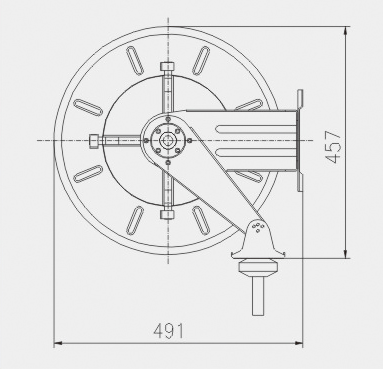

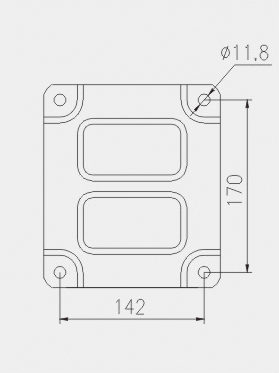

Main View		Side View		Install
