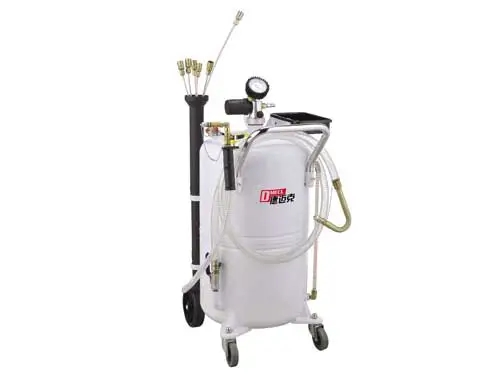

T647 Series Vacuum Oil Drainer

Name: T647 Series Vacuum Oil Drainer
Brand: ZHEJIANG DINDE TECH CO., LTD.

T647 SERIES Air-operated combination suction-drainers.

Ideal for quick engine oil change of any motor vehicle. The used oil is drained by gravity, through the bowl (15 litres ) mounted on the side support and height adjustable, and by suction with the probes supplied. After depressurisation the drainer works independent without requiring continuous connection to the connection to the compressed air system. Suck hot oil at 70-90°C.

Contact Now

DMECL

SCROLL DOWN

Specification of T647 Series Vacuum Oil Drainer

Article	T626065	T626090	T6260115
Tank capacity	65L	90L	115L
Depressurisation time	2 min	2.5-3 min	3.5-4 min
Suction speed(oils 70-90c,probes 6 mm)	1.5-2L/min	1.5-2L/min	1.5-2L/min
Total suction capacity	43-45L	60-65L	75-90L
Suction hose	2m	2m	2m
Draining hose	2m	2m	2m
Max. pressure for draining	4-7bar	4-7bar	4-7bar
Max.height	A=880mm	A=1000mm	A=1060mm
