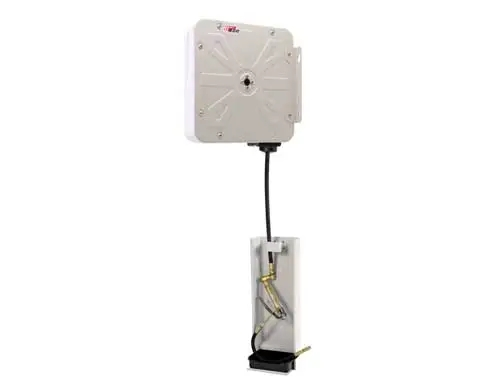

Complete open and enclosed hose reel kits for delivering grease.
They can be supplied with 1/4" or 3/8" hose. Application is by means of connection to a fixed system or directly to the air-operated dispensing pump.
| K76601 | K76603 | K76605 |
| R630704.6410 R640704.6415 D6106402012 | ||
| G730643 grease gun | ||
| A01900 drip-tray | ||
| Working pressure: 300-400bar | ||
| K76910 | K76911 |
| R970704.6412 R960704.6410 | |
| G730643 grease gun | |
| A01900 drip-tray | |
| Working pressure: 300-400bar | |

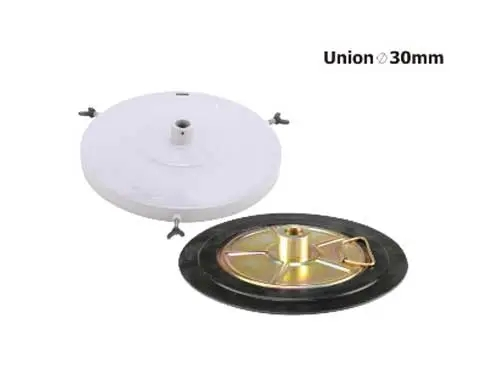

| Drum cover | |
| A05280 | Drum cover@280mm(drums external 240-260mm) |
| A05310 | Drum cover@310mm(drums external260-300mm) |
| A05350 | Drum cover@350mm(drums external300-330mm) |
| A05385 | Drum cover@385mm(drums external335-360mm) |
| A05420 | Drum cover@420mm(drums external@360-400mm) |
| A05600 | Drum cover@600mm(drums external@540-580mm) |
| Follower plate | |
| A03265 | Follower plate@265mm(drums internal@240-260mm) |
| A03310 | Follower plate@310mm(drums internal260-300mm) |
| A03340 | Follower plate@340mm(drums internal@300-330mm |
| A03370 | Followerplate@370mm(drums internal@335-360mm |
| A03410 | Follower platea400mm(drums internala360-400mm) |
| A03585 | Follower plate@585mm(drums internal@540-580mm) |
| Drum cover | |
| A06385 | Drum cover@385mm(drums external335-360mm) |
| A06420 | Drum cover@420mm(drums external@360-400mm) |
| A06600 | Drum cover@600mm(drums external540-580mm) |
| Follower plate | |
| A04370 | Follower plate@370mm(drums internal@335-360mm) |
| A04410 | Follower plate@400mm(drumsinternal@360-400mm) |
| A04585 | Follower plate@585mm(drums internal 540-580mm) |
