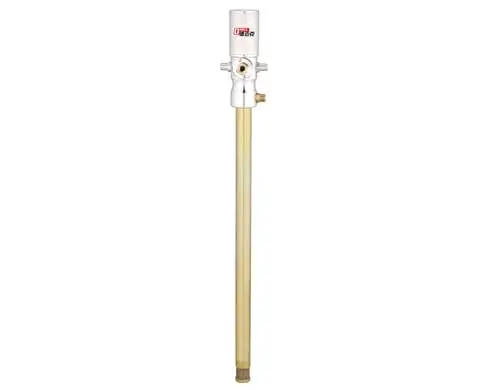

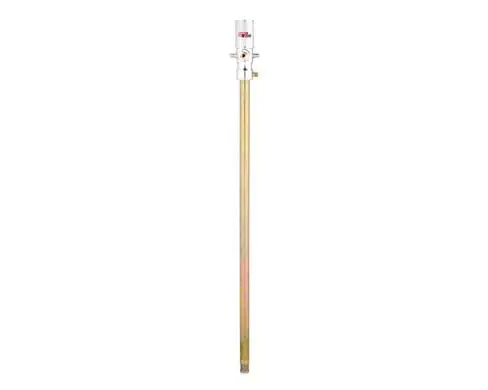

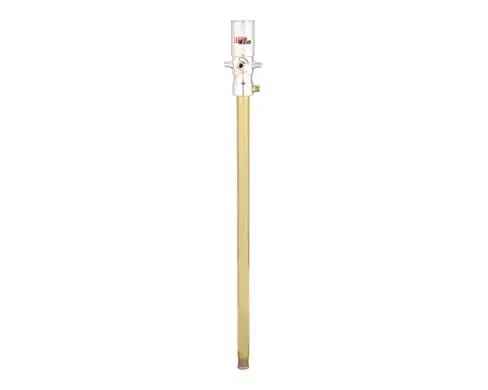

P356 Series Pneumatic Piston Pump

  • Suitable for transfering Low-viscosity liquids at short and medium distance.

  • Long life, easy to maintain.

  • Excellent design, fewer parts for reducing pump wornUnique air motor ensure pump smoth action.

  • Suitable for engine oil. synthetic oil hydraulic oil, gearoil, anti-freeze liquids. ATF oil and allied products.

  • Suitable for oil up to 130 SAE.

  • Supplied with 2' pump bung adaptor.

DMECL

Specification of P356 Series Pneumatic Piston Pump

Reference
Compression ratio3:1
Air inlet connectionF1/4"G
Oil outlet connectionM1/2"G
Working pressure8 bar
Max. flow pressure24 bar
Air consumption100L/min
Relative capacity12L/min
Suction tube diameter42 mm
