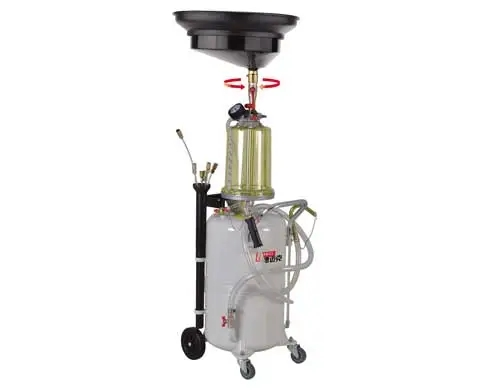

T657 SERIES Air-operated combination suction-drainers with transparent prechamber.
Ideal for quick engine oil change of any motor vehicle. The used oil is drained by gravity, through the bowl (15 litres) and by suction with the probes supplied. The prechamber (8-litre capacity) can be used for rapid and independent suction It's transparency allows the quantity and quality of the sucked oil to be checked immediately. After depressurisation the oil drainer works without requiring continuous connection to the compressed air system. Suck hot oil at 70-90C.
| Article | T657065A | T657090A | T6570115A |
| Tank capacity | 65L | 90L | 115L |
| Prechamber capacity | 8L | 8L | 8L |
| Depressurisation time | 2min | 2min | 2min |
| Suction Speed(oils 70-90%c,probes 6 mm) | 1.5-2L/min | 1.5-2L/min | 1.5-2L/min |
| Total suction capacity | 43-45L | 60-65L | 75-90L |
| Suction hose | 2m | 2m | 2m |
| Draining hose | 2m | 2m | 2m |
| Max. pressure for draining | 4-7bar | 4-7bar | 4-7bar |
| Max. height | A=1730mm | A=1730mm | A=1790mm |
| Min. height | B=1310mm | B=1420mm | B=1480mm |
| Diameter oversize funnel | 580mm | 580mm | 580mm |
