Portable manual lever-operated grease transfer pumps. Each cycle of the lever delivers 50g of arease. Practical and handy. They are used for filling gearcases, casings and-operated grease guns. They enable easy changing of the grease drums or bucket and are equipped with a grease follower plate that protects the lubricant and ensures positive priming.

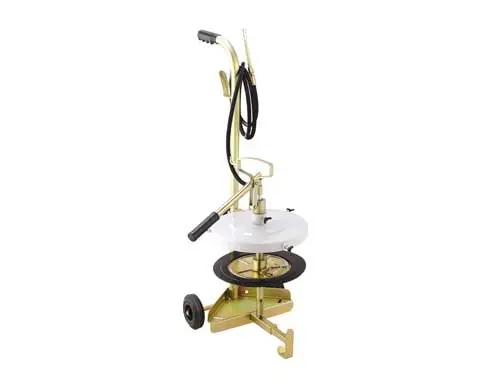

Trolley-mounted grease dispenser kit:
The ideal combination for dispensing grease in any workplace. The entirely galvanised trolleys are also suitable for carrying 20 - 60 kg drum. The compact size makes this manual grease dispenser very easy to handle and their modularity enables compact packing for easy transport and storage.
| K75035 | K75030 |
| Manual pump 410mm | |
| A05310 drum cover 310mm | A05280 drum cover 280mm |
| A03310 follower plate 310mm | A03265 follower plate 265mm |
| Grease gun | |
| A176402.0025 1/4x2.5m | |
| Flow rate: 250-300g/min | |
| Max outlet pressure: 350-400bar | |
| K75335 | K75330 |
| Manual pump 410mm | |
| A09061 trolley | |
| A05310 drum cover 310mm | A05280 drum cover 280mm |
| A03310 follower plate 310mm | A03265 follower plate 265mm |
| Grease gun | |
| A176402.0025 1/4" x2.5m | |
| Flow rate: 250-300g/min | |
| Max outlet pressure: 350-400bar | |
| K75337 | K75338 | K75339 |
| Manual pump 410mm | ||
| A09061 trolley | ||
| A05350 drum cover 0350mm | A05385 drum cover 385mm | A05420 drum cover 420mm |
| A03340 folower plate 340mm | A03370 folower plate 370mm | A03410 folower plate 410mm |
| Grease gun | ||
| A176402.0025 1/4' x2.5m | ||
| Flow rate: 250-300g/min | ||
| Max outlet pressure: 350-400bar | ||
